| Nama merek: | PHIDIX |
| MOQ: | 100 pieces |
| harga: | $30.00/pieces >=100 pieces |

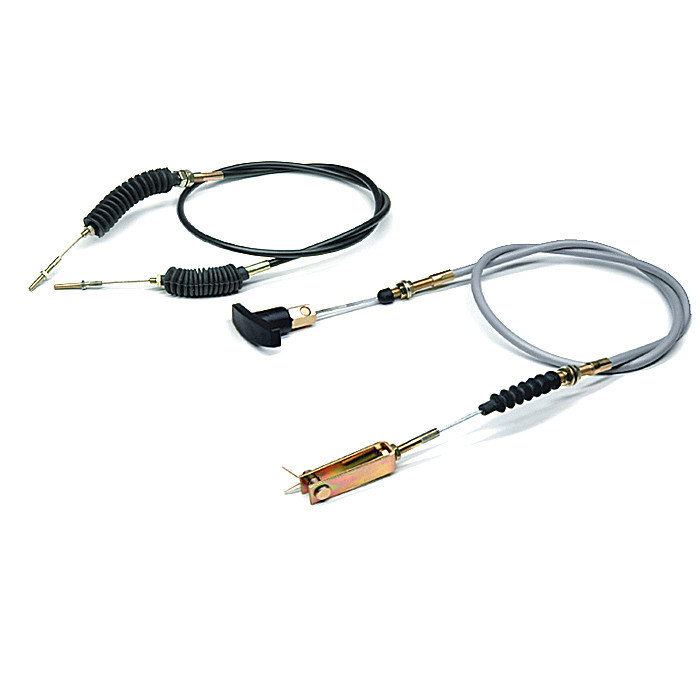

[Pull-Only T-FLEX, Control Cables]
Description: Applications: Features:
Pull-Only T-Flex • Clutch cable • Multi-strand, high-tensile,
Industrial Control • Throttle cable steel cable
Cable Assembly • Hand brake cable • Polypropylene, PVC
• Engine stop cable or uncoated
• High density polypropylene
liner available
• Can fit a variety of accessory
components, available in
both UNF and metric
thread options
• Wide range of sizes
combinations w/loads
0kg — 1000kg
• Armored strands and solid
wires available
[Pull-Only Industrial]
Commercial cost effective product range for pull only applications.This series offers a wide range of sizes and combinations, for applications with loads from 0kg to 1000kg. The inner cable is a multi-strand, high-tensile steel cable, tinned or galvanized for corrosion resistance. Armored strands and solid wires are also available. The outer is a flexible conduit comprising one or two high-tensile steel wires, wound spirally to give maximum compression strength. All sizes are available covered with either polypropylene or PVC for protection, or uncovered. Some sizes can be fitted with high density polypropylene liner for extra smooth low-friction operation.
[Material]
• Plated Steel • Pull Only Twin-V End Fittings
Standard, Optional High Compression • Clevises
Stainless Steel Load Conduit, • Eye Ends
Lined and Unlined • Swivels
• Knobs

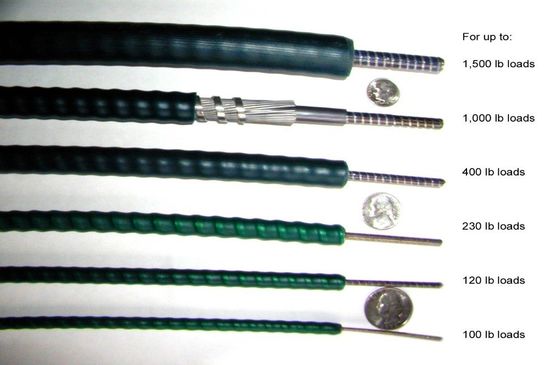

[Conduits & Inner-members with Different Loads]
[Push-Pull Cable Parameter Table]
Phidix Motion Controls (PMC) started the business in 2004, and became the only authorized Cable Assembler in China by the American based company Cablecraft Motion Controls (CMC) in 2011.
CMC was originally a subsidiary of Tuthill Group (more than 100 years history), headquartered in New Haven Indiana US and became independent in 2011. CMC can offer diverse high-end drive control products and engineering solutions. The product line includes control flexible shaft of the various specifications, cab units and a category range of standard parts, widely used in high-end industrial customer markets, such as luxury bus, heavy truck, aerospace, construction machinery, rail transportation, agricultural machinery, gardening equipment, racing cars, military vehicles, tanks etc. as selection of shift control, throttle cable, clutch cable, brake line, valve and other mechanical transmission controls.
Just after CMC became the independent group in 2011, PMC became the only authorized Assembler in China responsible for the manufacturing, assembly, sales, technical support, after-sales service of control items from CMC, acted as the multi-functional management and development center (PMDC) for the R&D of creative control technology, parts manufacturing, cable assembly and the import and export business as well.
Today, thousands of personalized products designed and produced by PMC in China are selling to all over the world.
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!!!
