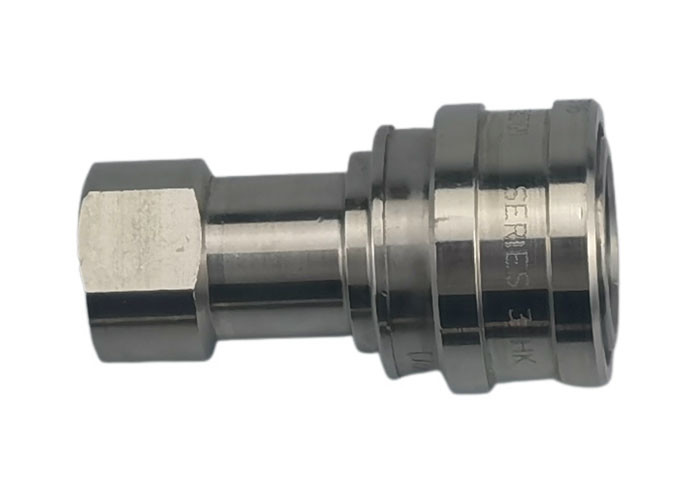

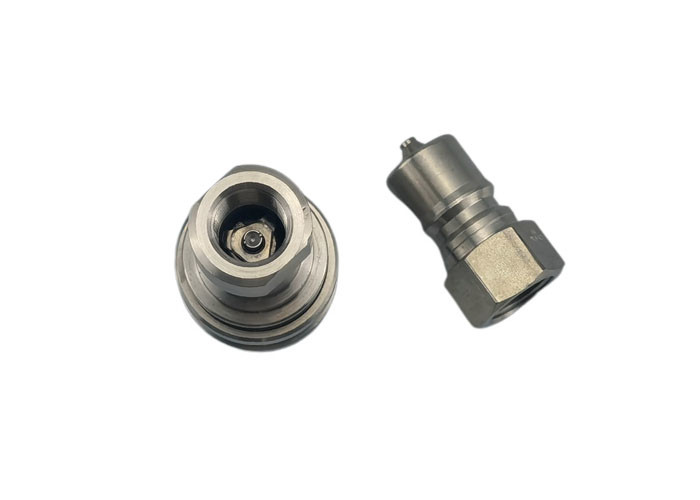

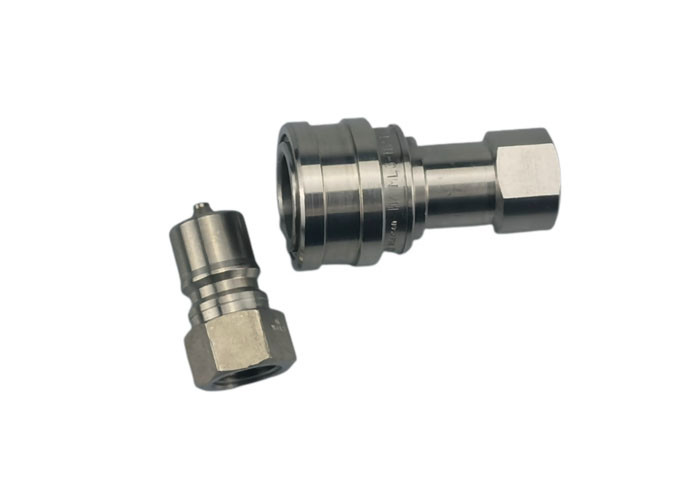

hidraulik kopling pemutus cepat stainless steel 316 close type hidraulik kopling cepat
Pergantian kopling cepat
Fitur
CB-SPL-1FG/ CB-SPM-1FG digunakan dalam peralatan konstruksi, aplikasi hidrolik.Kopling Double Shut-Off ini dapat ditemukan di mana saja bahwa saluran transfer cairan perlu dihubungkan dan diputuskan untuk operasi atau pemeliharaan peralatan, dan kehilangan cairan tidak diinginkan.
Bahan Standar
| Ukuran tubuh | Teman. | Benang | A | B | Melalui Flats |
| 1/8" | CB-S1L-1FG/CB-S1M-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1L-1FN/CB-S1M-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/4 " | CB-S2L-1FG/CB-S2M-1FG | Kebersihan, 4/1-19 | 2.26 | 1.17 | 0.75 |
| 1/4 " | CB-S2L-1FN/CB-S2M-1FN | Perbedaan Antara Orang Tua dan Anak | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3L-1FG/CB-S3M-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3L-1FN/CB-S3M-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2 " | CB-S4L-1FG/CB-S4M-1FG | Perbedaan Antara Orang Tua dan Anak-anak | 2.96 | 1.86 | 1.13 |
| 1/2 " | CB-S4L-1FN/CB-S4M-1FN | Perbedaan Antara Orang Tua dan Anak-anak | 2.96 | 1.86 | 1.13 |
| 3/4 " | CB-S6L-1FG/CB-S6M-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4 " | CB-S6L-1FN/CB-S6M-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1 " | CB-S8L-1FG/CB-S8M-1FG | 1 sampai 11 | 4.13 | 2.61 | 1.75 |
| 1 " | CB-S8L-1FN/CB-S8M-1FN | 1 sampai 11 |
4.13 | 2.61 | 1.75 |
| Ukuran tubuh | Teman. | Benang | C | D | E | HEX |
| 1/8" | CB-P1L-1FG/ CB-P1M-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1L-1FG/ CB-P1M-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/4 " | CB-P2L-1FG/ CB-P2M-1FG | Kebersihan, 4/1-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| 1/4 " | CB-P2L-1FN/ CB-P2M-1FN | Perbedaan Antara Orang Tua dan Anak | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3L-1FG/ CB-P3M-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3L-1FN/ CB-P3M-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2 " | CB-P4L-1FG/ CB-P4M-1FG | Perbedaan Antara Orang Tua dan Anak-anak | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2 " | CB-P4L-1FN/ CB-P4M-1FN | Perbedaan Antara Orang Tua dan Anak-anak | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4 " | CB-P6L-1FG/ CB-P6M-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4 " | CB-P6L-1FN/ CB-P6M-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1 " | CB-P8L-1FG/ CB-P8M-1FG | 1 sampai 11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1 " | CB-P8L-1FN/ CB-P8M-1FN | 1 sampai 11 |
2.85 | 1.88 | 0.97 | 1.63 |
