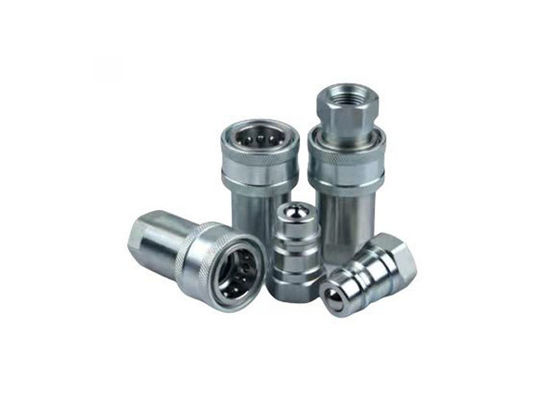

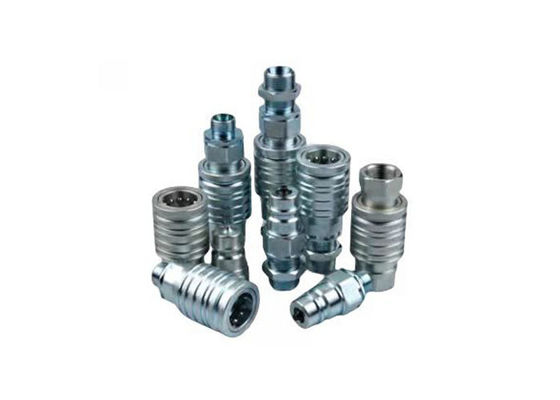

Aplikasi: Seri ISO5675 membawa ke industri desain terbukti untuk digunakan pada peralatan konstruksi, Perkakas kehutanan, mesin pertanian, alat minyak, mesin pabrik baja,dan aplikasi hidraulik lainnya yang menuntut.
Spesifikasi:
| Ukuran tubuh (dalam) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Tekanan nominal (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Aliran Nominal (GPM) | 3 | 6 | 12 | 28 | 50 |
| Rentang suhu (std seal) | -20°C sampai +120°C | ||||
| Bahan segel standar | NBR | ||||
Fitur
| ISO | Teman. | LS | ¢ D | HEX1 | A | T |
| 6.3 | CB-S2S-5F | 53.5 | 27.6 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-5F | 63 | 34 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-5F | 66.3 | 38.6 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-5F | 82.5 | 48.2 | 34 | 19 | G3/4 NPT3/4 |
| 20 | CB-S6S-5F ((E) | 83.5 | 47.5 | 35 | 18 | G3/4 NPT3/4 |
| 25 | CB-S8S-5F | 96.5 | 56 | 41 | 21 | G1 NPT1 |
| ISO | Teman. | LP | d | C | HEX2 | A | T |
| 6.3 | CB-P2S-5F | 36 | 14.2 | 18.5 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-5F | 40 | 19 | 22 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-5F | 43.5 | 20.5 | 27 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-5F | 53.5 | 28 | 32 | 34 | 19 | G3/4 NPT3/4 |
| 20 | CB-S6S-5F ((E) | 51 | 26.9 | 28.5 | 33.3 | 18 | G3/4 NPT3/4 |
| 25 | CB-S8S-5F | 63 | 31.3 | 38 | 41 | 21 | G1" NPT1" |
