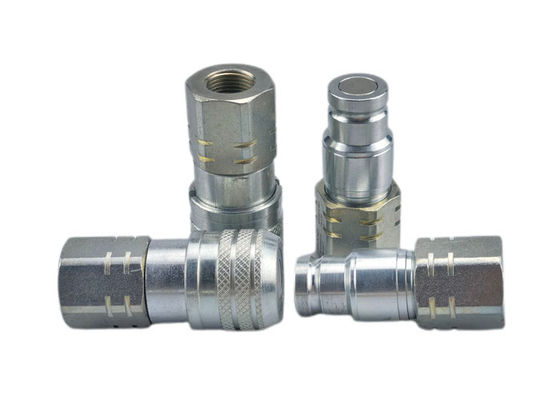

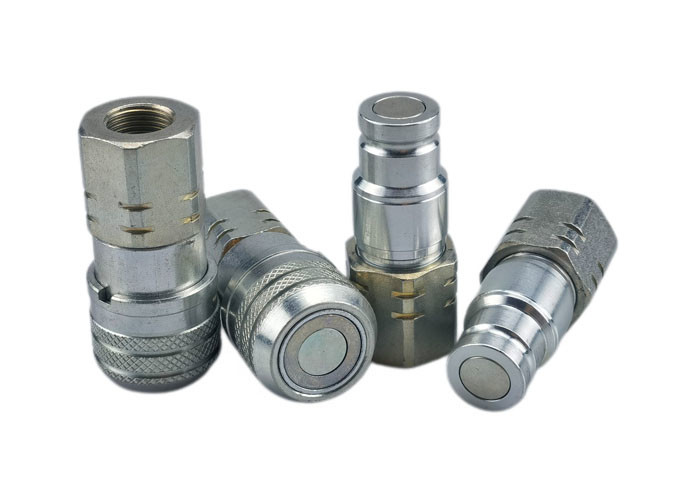

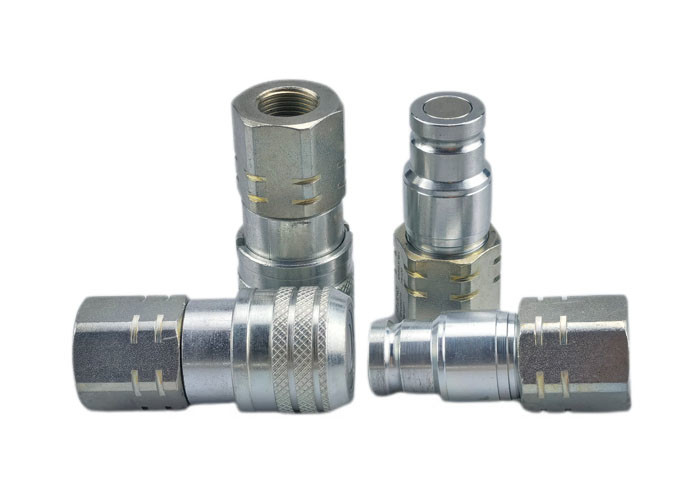

1/2' ISO16028 Flat Face Hydraulic Standard Steel Flat Face Couplings
Fitur
Kopling seri CB-6 adalah kopling hidraulik dry break flat face atau minimum spill yang memenuhi standar ISO16028. Ukuran bodi adalah 1/4", 3/8", 1/2", 5/8", 3/4" dan 1".
Aplikasi
Seri CB-6 sangat ideal untuk aplikasi di mana tumpahan hidrolik adalah perhatian dan interchangeability dengan produsen lain adalah penting.Peralatan Pertanian, Peralatan Pertambangan, Pemeliharaan Kereta Api, Lift ember atas, Skid steer loader
Bahan Standar
| Ukuran tubuh | Teman. | Benang | A | B | HEX |
| 1/4 " | CB-S2S-6FN | 1/4 | 2.32 | 1.10 | 0.87 |
| 3/8" | CB-S3S-6FN | 3/8 | 2.87 | 1.26 | 1.18 |
| 3/8" | CB-S3S-6FN | 1/2 ′′ | 2.87 | 1.26 | 1.18 |
| 1/2 " | CB-S4S-6FN | 1/2 ′′ | 3.31 | 1.50 | 1.42 |
| 1/2 " | CB-S4S-6FN | 3/4 | 3.31 | 1.50 | 1.42 |
| 5/8" | CB-S5S-6FN | 1/2 ′′ | 3.23 | 1.65 | 1.42 |
| 5/8" | CB-S5S-6FN | 3/4 | 3.39 | 1.65 | 1.42 |
| 3/4 " | CB-S6S-6FN | 3/4 | 3.74 | 1.89 | 1.61 |
| 3/4 " | CB-S6S-6FN | 1 ¢ | 3.86 | 1.89 | 1.61 |
| 1 " | CB-S8S-6FN | 1-1/4 | 4.33 | 2.17 | 2.17 |
| Ukuran tubuh | Teman. | Benang | C | D | HEX |
| 1/4 " | CB-P2S-6FN | 1/4 | 2.05 | 0.63 | 0.87 |
| 3/8" | CB-P3S-6FN | 3/8 | 2.52 | 0.78 | 1.18 |
| 3/8" | CB-P3S-6FN | 1/2 ′′ | 2.52 | 0.78 | 1.18 |
| 1/2 " | CB-P4S-6FN | 1/2 ′′ | 2.91 | 0.96 | 1.42 |
| 1/2 " | CB-P4S-6FN | 3/4 | 2.95 | 0.96 | 1.42 |
| 5/8" | CB-P5S-6FN | 1/2 ′′ | 2.87 | 1.06 | 1.42 |
| 5/8" | CB-P5S-6FN | 3/4 | 2.95 | 1.06 | 1.42 |
| 3/4 " | CB-P6S-6FN | 3/4 | 3.39 | 1.18 | 1.61 |
| 3/4 " | CB-P6S-6FN | 1 ¢ | 3.39 | 1.18 | 1.61 |
| 1 " | CB-P8S-6FN | 1-1/4 | 3.54 | 1.42 | 2.17 |
