High Performance Gear Shift Control Cable Assembly with Carbon Steel / Stainless Steel Inner Cable and Up To 1500N Operating Load

100 potong/potong
MOQ
Dapat dinegosiasikan
harga
High Performance Gear Shift Control Cable Assembly with Carbon Steel / Stainless Steel Inner Cable and Up To 1500N Operating Load
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
nama: Rakitan Kabel Kontrol Perpindahan Gigi Kinerja Tinggi – Produsen Kontrol Gerakan Phidix
Merek: PHIDIKS
Sertifikat: IATF16949
Bahan kabel bagian dalam: Baja karbon / baja tahan karat
Bahan Casing Luar: Saluran Spiral PVC, Polimer, Atau Baja
Diameter kabel: 2mm–10mm (Dapat Disesuaikan)
Rentang panjang: 0,5m–10m (Panjang Kustom Tersedia)
Beban Operasi: Hingga 1500N (Tergantung Konfigurasi)
Radius tikungan minimal: 100mm–300mm
Suhu Operasional: -40 ℃ Sampai +150 ℃
Akhiri perlengkapan: Clevis, Garpu Bentuk U, Ball Joint, Stud Berulir, Atau Custom
Menyoroti:

High Performance Gear Shift Control Cable Assembly

,

Carbon Steel / Stainless Steel Inner Cable Control Cable Assembly

,

Up To 1500N Operating Load Mechanical Motion Transmission Cable
Informasi dasar
Tempat asal: CINA
Nama merek: PHIDIX
Sertifikasi: IATF16949
Nomor model: Pengumpulan Kabel Kontrol
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton atau Kotak Kayu
Waktu pengiriman: 7-40 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T
Menyediakan kemampuan: 888 Potongan/Potongan per Bulan
Deskripsi Produk
High Performance Gear Shift Control Cable Assembly
Phidix Motion Control Manufacturer
The gear shift control cable is designed to transmit precise mechanical motion between the gear lever and the transmission system. Manufactured by PHIDIX, this cable assembly features a flexible stainless steel core and a durable outer sheath for smooth operation and long service life. It ensures accurate gear engagement, reliable performance, and reduced maintenance in both manual and automatic transmission applications.
Applications
  • Manual and automatic transmission systems
  • Construction and agricultural machinery
  • Marine engine and throttle systems
  • Industrial vehicles and forklifts
  • Control systems for heavy-duty equipment
  • Off-road and utility vehicles
Features
  • High Flexibility: Smooth and consistent motion transmission under varying conditions.
  • Durable Construction: Stainless steel inner core with abrasion-resistant jacket for long lifespan.
  • Weatherproof: Resistant to corrosion, moisture, and extreme temperatures.
  • Low Friction: Inner liner minimizes resistance for easier gear shifting.
  • Customizable Design: Available in various lengths, end fittings, and materials.
Installation And Maintenance
  • Always check and ensure the routing of the original cable and its dimensions to be identical to the new cable before installing.
  • Lubricate the cables with some light oil prior to installation.
  • When routing cables, make sure that there's enough gap between the cable and any heat source to allow the cables to move.
  • Once installed, check the cable's operation from steering lock to lock to make sure it works both ways (Push/Pull).
  • For maintenance, cables should be removed and flushed with a blast of air to prolong cable's life. However, replacing the cables at regular intervals should always still be the best option.
End Parts Of Fittings
Our accessory items available include clevis assemblies, pivots, ball joints, terminal eye fittings, shims, clamps, u-bolt assemblies and mounting brackets etc.

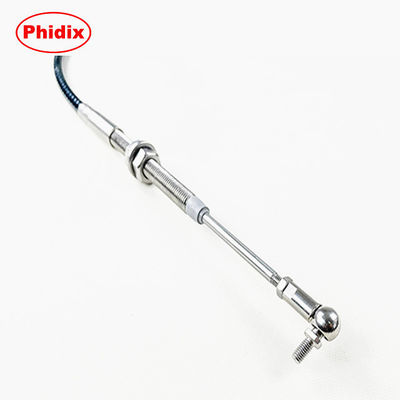

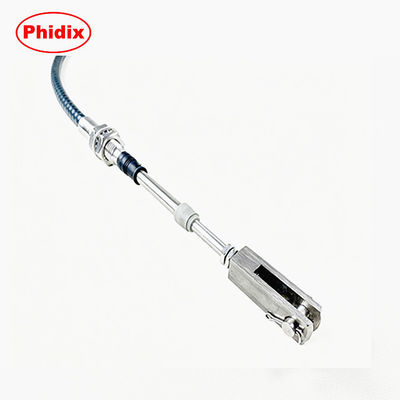

Product Image
